Ford F150/Super Duty Linkswell Gen VI (6) T-Style Radio

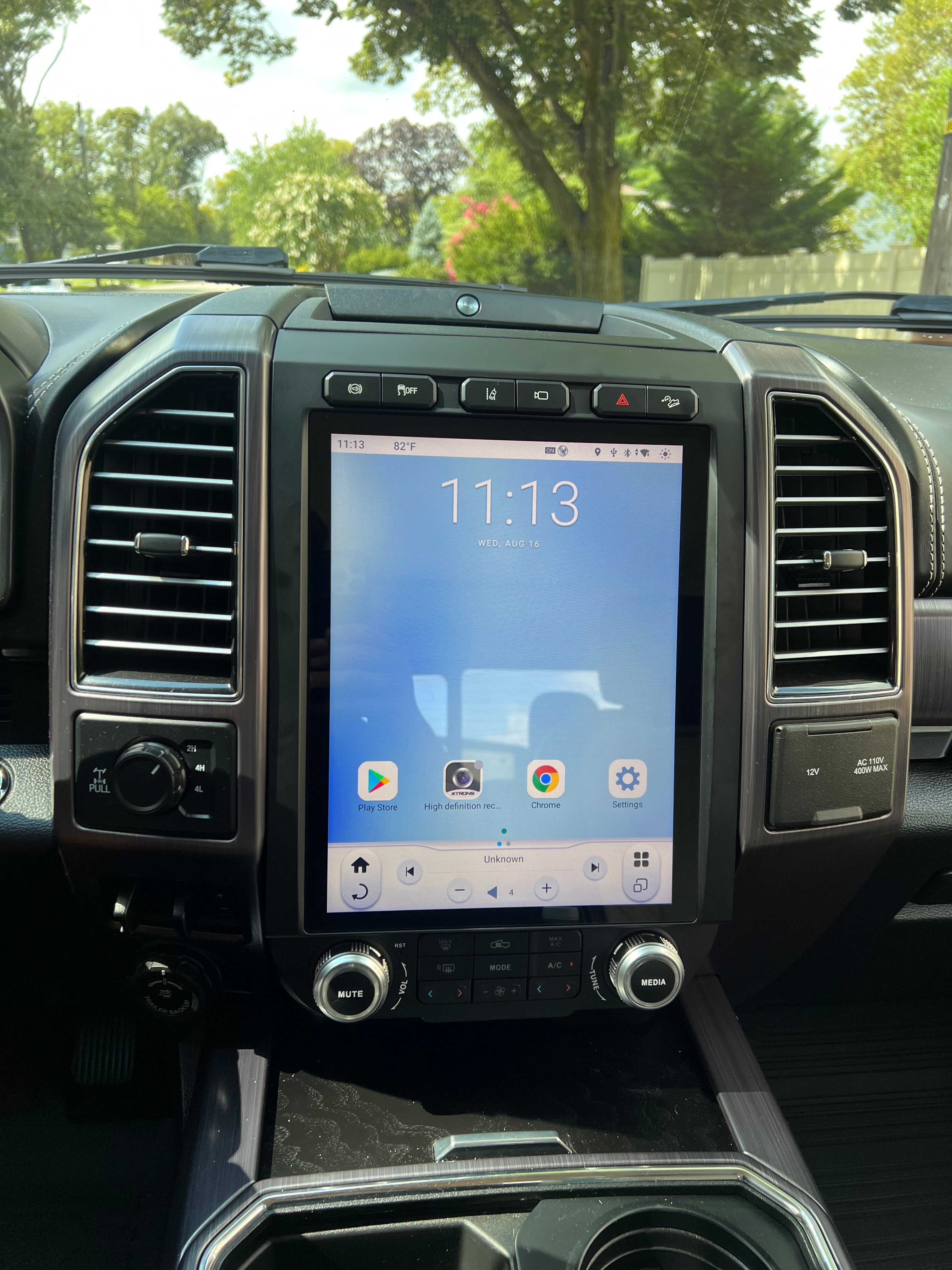

• • 13″ HD touch screen Android Tablet
  • Android 11 w/Fast Boot
  • Qualcomm QCM6125 8Core Processor
    • 4GB Ram
    • 64GB Memory
  • Google Play Store App Downloads

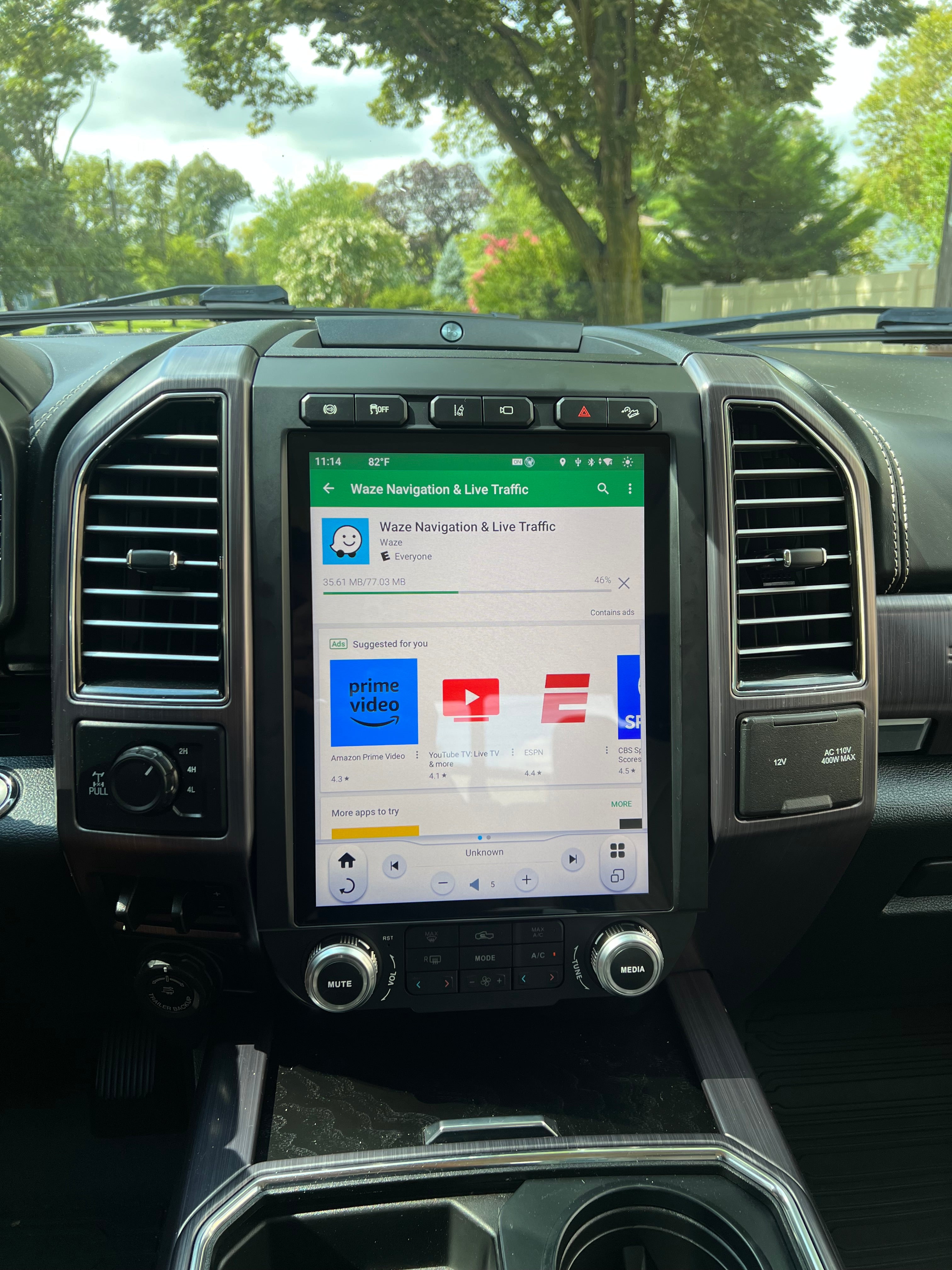

  • **USING WIFI** run Google Maps, WAZE or other Data based navigations
  • AM/FM Radio w/RDS (12 FM presets, 6 AM presets, plus My Favorite Stations )
  • 3 USB inputs (1 factory input, 1 auxiliary)
  • BT 5.0 DR/EDR/BLE
    • Bluetooth may work with certain Bluetooth controlled devices
  • USB Music and Video player w/HD Video and Video in motion options
  • HDMI Output
  • HDMI Input
    • REQUIRES PART NUMBER LW-TSHMDI-IN
  • 4X50 Watt built-in amplifier w/DSP & EQ
  • 4 Volt RCA Preouts (Front, Rear, Sub)
  • SPDIF Output
    • Optical
  • EQ
    • 16 Band
    • Low Pass/High Pass Filter
    • Subwoofer
      • Filter
      • Gain Control
  • PhoneLink System (Apple & Android compatible)
    • Wireless Apple CarPlay
    • Wired / Wireless Android Auto
    • AirPlay

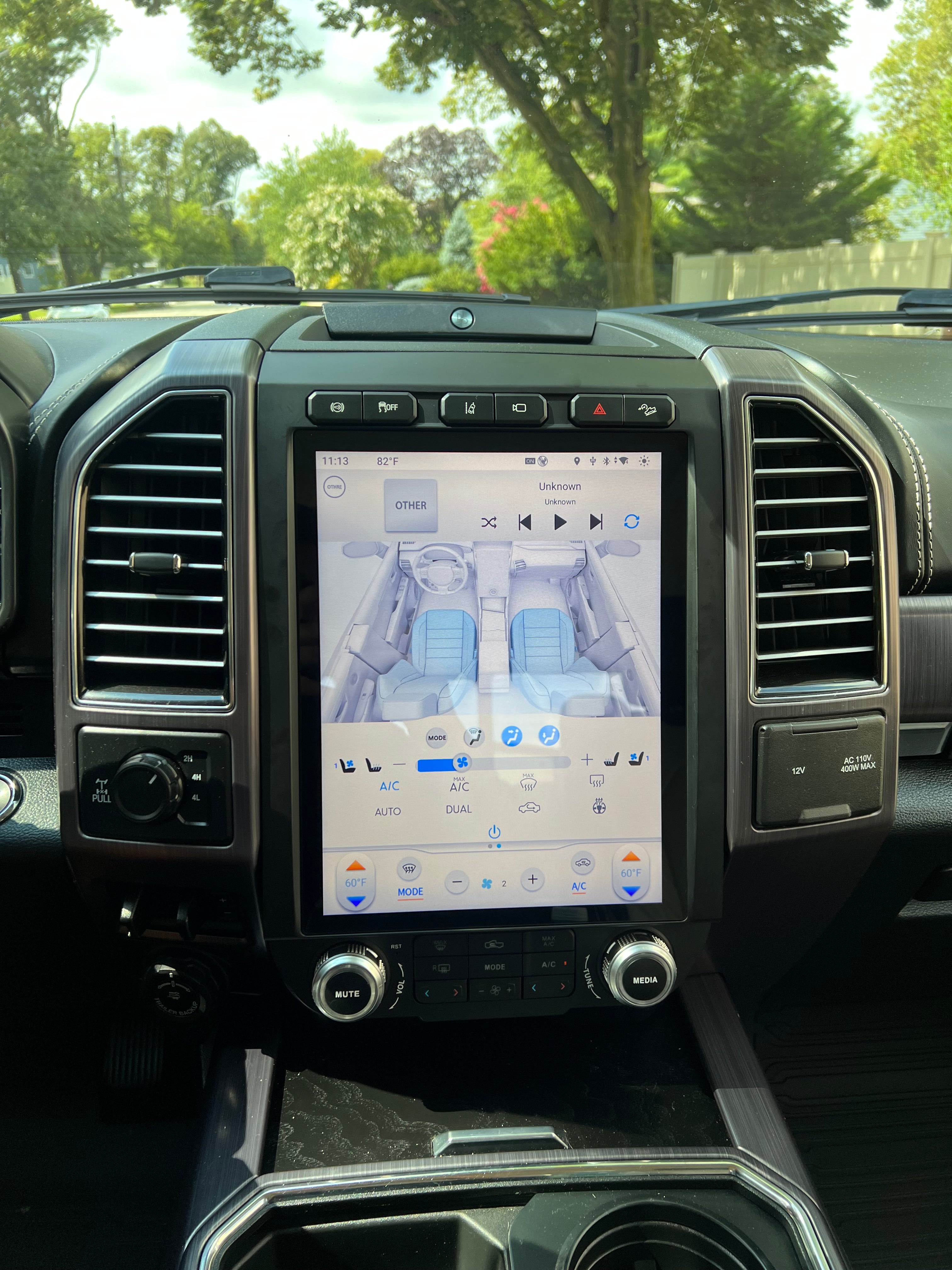

  • On Screen/touch screen climate controls – if equipped A/C, Dual Zone Climate, Seat heaters/coolers, defroster, etc.
  • 3 Camera inputs (Front, rear, side)
    • Retains Factory reverse Camera
    • Reatins factory 360 camera
      • If factory 360 is controlled by the factory touch screen part number TS-FD360ADPT is required to retain all functions
    • Optional Multi-Cam adapter (TS-FDMCADPT) available to add 6 Camera inputs with onscreen access and CanBus triggers
  • Display factory parking sensors (if equipped)
  • WIFI for web browser, and streaming apps
    • 2.4 GHz
    • 5G



  *F-150’s EQUIPPED WITH B&O REQUIRE PART# TS-FDBOADPT

  **ALL 2020-UP SUPER DUTY’S REQUIRE EITHER HARNESS TS-FDSDHARN for Non B&O TRUCKS or TS-FDSDBOADPT FOR SUPER DUTY’S EQUIPPED B&O

  ***May not be compatible with other aftermarket CANBUS devices that are installed in the vehicle….. ie tuners, start stop bypasses, OBD devices, speed calibrators etc.

INSTALL VIDEO: https://www.youtube.com/watch?v=yQ3k7bqToH4

This UNIT IS NOT SIRIUS XM READY!
